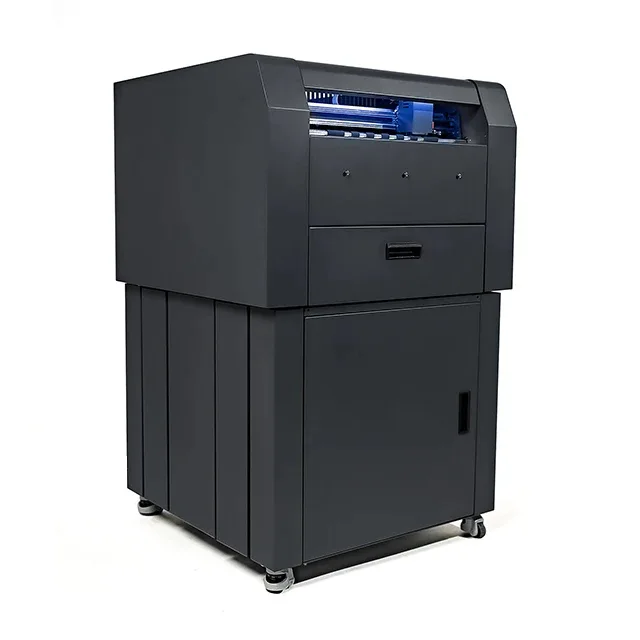

Cutting Plotter A3 MAX 5 PRO-600 Auto-Feeder with Rotary Tool
In Stock
- High-performance servo motor; stacks up to 1200 sheets (depending on material type).
- Fully automatic tracking and positioning with high precision.
- Cutting precision: ±0.01 mm for flawless results.
- Supports popular design software like CorelDRAW, Adobe Illustrator, and more.
- High productivity: 1800–2200 sheets/day; supports both half-cut and full-cut operations.
- Enhanced dual-head cutting system for increased speed and efficiency.
Product Description
Specifications
| Product | SKYCUT A3 MAX 5 Pro-600 |
|---|---|
| Max Media Width | 600 mm |
| Max Cutting Width | 580 mm |
| Max Feeding Quantity | Up to 1000 PCS |
| Cutting Precision | 0.01 mm |
| Repeat Precision | 0.08 mm |
| Max Moving Speed | 1600 mm/s |
| Max Cutting Speed | 1600 mm/s |
| Max Force | 3000 g |
| Connector Interface | U-disk / Wi-Fi / USB Cable |
| Power | < 120 W |
| Working Environment | +5°C – +35°C |
| Packing Size | 870 × 867 × 645 mm |
| Packing Gross Weight | Approx. 128 kg |
| Cabinet | 870 × 810 × 710 mm |
| Cabinet Weight | Approx. 83 kg |
Product Uses

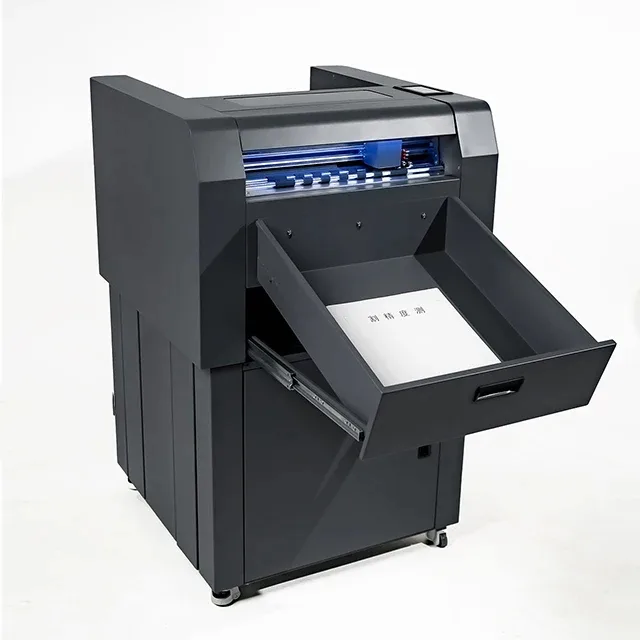

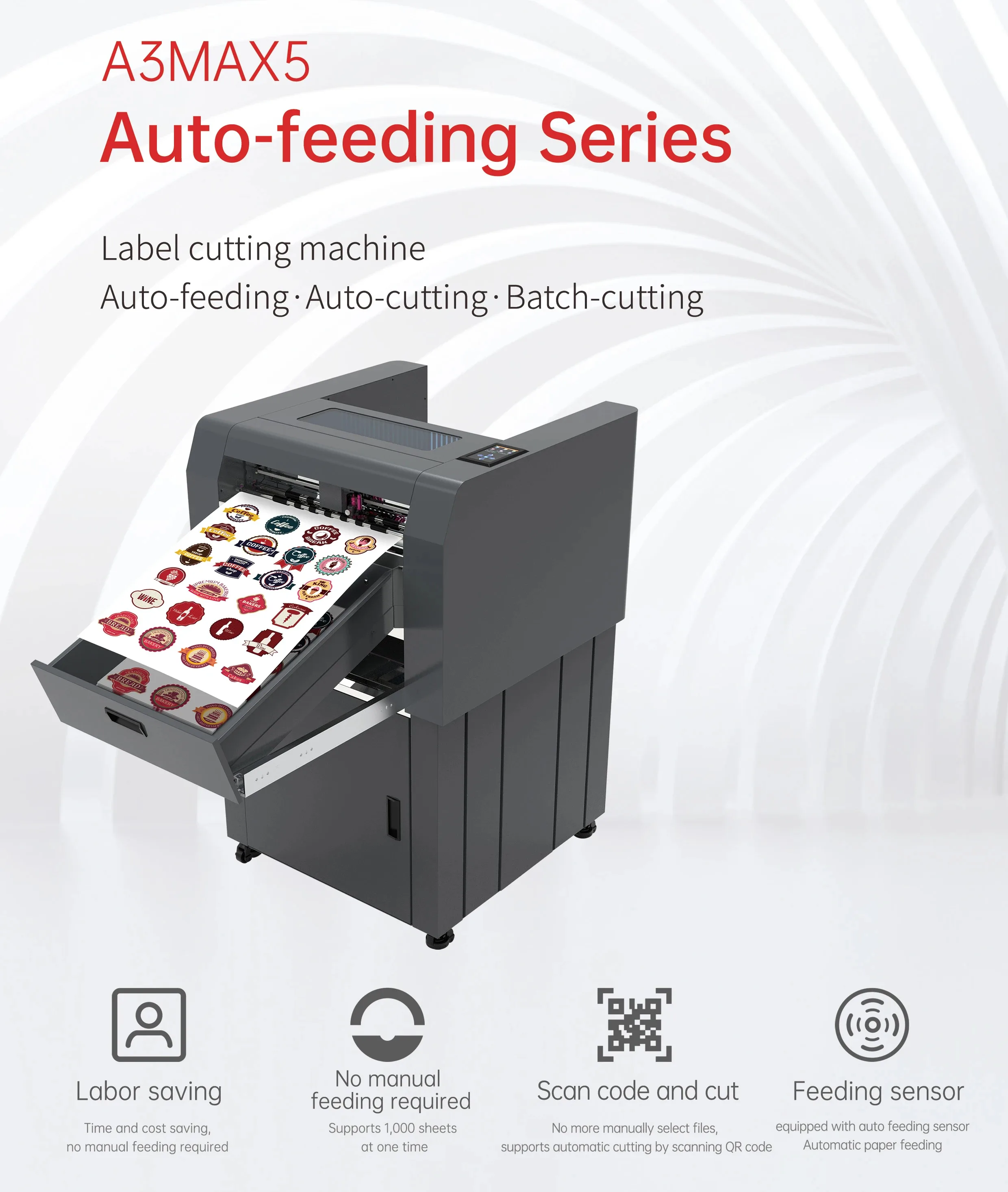

Auto Feeding System — now faster and more stable with higher sheet capacity.
Double Row Roller — saves material efficiently with minimal margin waste.
Large, colorful multi-touch screen with an intuitive and concise interface.
High display quality and user-friendly features for seamless operation.
